Underrated Data Visualization Tools You Need to Master in 2025

Introduction

Data visualization tools are important for data scientists. They help turn raw data into clear and meaningful insights. In 2025, we are using interactive charts, big data visualization, and AI-powered dashboards more frequently. We are familiar with tools like Matplotlib, Seaborn, and Plotly, as we use them extensively in our projects. However, here are some underrated tools that can make your work faster, easier, and more powerful.

In this guide, Let’s explore some lesser-known but highly effective data visualization tools. These tools helps you to handle big datasets, create interactive dashboards, and 3D visualizations. This will be add lucrative to your skill set. You may be working with Python, Jupyter Notebooks, or web-based visualizations, these tools will help you analyze and present data better.

Let’s look at the best underrated tools every data scientist should master in 2025!

1. Datashader – Scalable Visualizations for Big Data

We knew that handling big data for visualization could be tricky. Normally, we use Matplotlib or Seaborn, but these data visualization tools struggle when dealing with millions or billions of data points. That’s why we have to use Datashader.

What is Datashader?

Datashader is a Python library built for scalable big data visualization. Traditional plotting libraries try to render every single data point, which isn’t efficient. Datashader works differently—it processes and aggregates data, making sure even massive datasets are visualized clearly and efficiently.

Why is Datashader Underrated?

Most people rely on Matplotlib, Seaborn, and Plotly for their data visualization needs. They don’t even know Datashader which is specifically designed for handling large data sets.However, these tools are not built to handle very large datasets. let’s see why this tool gets unnoticed by Data scientist.

1. Less Popular Than Matplotlib or Seaborn – Many people stick with what they know, so Datashader doesn’t get the attention it deserves.
2. Works Differently from Traditional Tools – Instead of directly plotting every point, Datashader first aggregates and processes the data. This makes it slightly more complex for beginners.
3. Best Used with Other Libraries – Datashader shines when paired with Pandas, Dask, or Holoviews, but many people don’t know how to integrate them.

Despite these reasons, Datashader is a must-learn tool in 2025, especially if you’re working with big data analytics, geospatial data, or high-density visualizations.

How Does Datashader Work?

Datashader follows a three-step process to create high-performance visualizations:

1. Data Preparation – It takes raw data and processes it using Pandas or Dask.
2. Aggregation – Instead of plotting every point, it calculates density maps that summarize the data efficiently.
3. Rendering – The aggregated data is turned into an optimized image, which ensures clarity and performance.

This process makes Datashader faster and more scalable than traditional visualization libraries.

Key Features of Datashader

1. Handles Billions of Data Points – Perfect for big data analytics and high-density visualizations.
2. Automatic Data Aggregation – It adapts plots based on data size, ensuring clarity even with massive datasets.
3. Fast and Efficient – Uses GPU acceleration for high-speed rendering.
4. Works with Other Libraries – Can be combined with Matplotlib, Plotly, Bokeh, and Holoviews for interactive visualizations.

Example: Visualizing 10 Million Points with Datashader

To show how powerful Datashader is, let’s create a scatter plot with 10 million points using Pandas and Datashader. If we tried this with Matplotlib, the plot would take forever to load. But with Datashader, it runs smoothly.

Python Code for Datashader Visualization

import numpy as np
import pandas as pd
import datashader as ds
import datashader.transfer_functions as tf
import matplotlib.pyplot as plt

# Generate a large dataset
np.random.seed(42)
n = 10_000_000  # 10 million points
df = pd.DataFrame({'x': np.random.randn(n), 'y': np.random.randn(n)})

# Create Datashader canvas
canvas = ds.Canvas(plot_width=800, plot_height=800)
agg = canvas.points(df, 'x', 'y', ds.count())

# Convert to an image
img = tf.shade(agg)

# Convert Datashader Image to NumPy array
img_array = np.array(img)

# Display using Matplotlib
plt.imshow(img_array, aspect='auto')
plt.axis('off')  # Hide axes
plt.show()

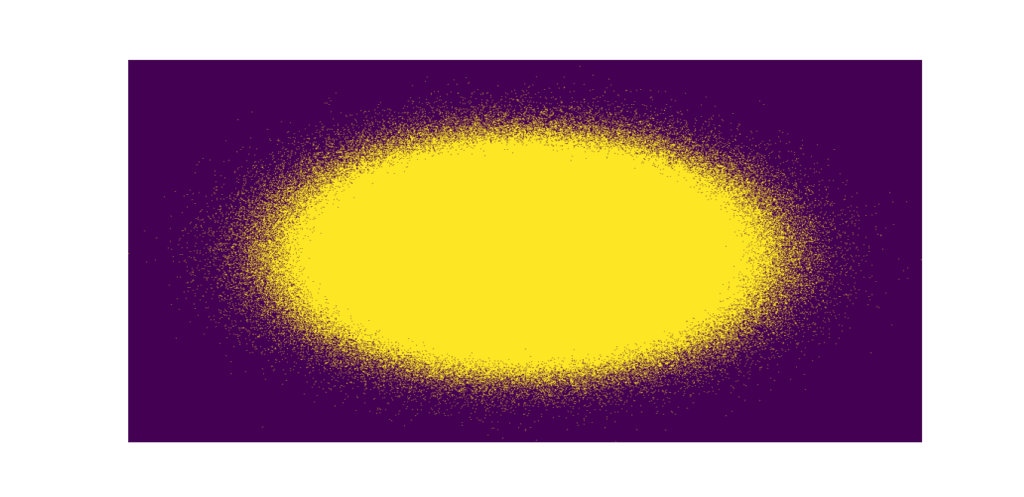

This code generates a massive scatter plot with 10 million points using Datashader and Matplotlib. Since plotting such a large dataset using Matplotlib alone would be slow and inefficient, Datashader efficiently aggregates and visualizes the data.

This example creates a scatter plot with 10 million points. Instead of lagging or crashing, Datashader processes the data efficiently, delivering a clear, high-resolution visualization.

When to Use Datashader?

• Working with big data (millions or billions of rows).
• When standard visualization tools become too slow.
• When you need high-performance, scalable visualizations.

Final Thoughts

Datashader is one of the most underrated data visualization tools in 2025. If you work with big data analytics, geospatial data, or large-scale scatter plots, mastering Datashader will give you an edge. Pair it with Holoviews and Bokeh to create powerful, interactive visualizations

2. Bokeh – Interactive Dashboards Without JavaScript

If you want to build interactive visualizations without writing JavaScript, Bokeh is the perfect tool. It lets you create beautiful, interactive dashboards using just Python, making it one of the top data visualization tools in 2025.

Many still use Matplotlib and Seaborn for static charts, but when it comes to dynamic, web-ready visualizations, those libraries fall short. Bokeh fills this gap by enabling interactive plots, zoomable maps, and full dashboards—without needing JavaScript!

Why is Bokeh an Underrated Data Visualization Tool?

Even though Bokeh is incredibly powerful, it doesn’t get as much attention as Plotly or Dash. Here’s why:

1. More Developers Know JavaScript-Based Tools – Many data scientists stick to D3.js or Dash, making Bokeh lesser-known.
2. Requires a Web Browser for Full Interactivity – Unlike Matplotlib, Bokeh’s true power shines when used in Jupyter Notebooks or web applications.
3. Less Popular Than Plotly for Interactive Charts – Many people default to Plotly, even though Bokeh is just as powerful and more Pythonic.

Despite this, Bokeh is one of the best Python data visualization tools, especially for those who want interactive, high-performance charts and dashboards without writing HTML, CSS, or JavaScript.

How Does Bokeh Work?

Bokeh makes it easy to create interactive visualizations by following a simple process:

1. Create the Figure – Start by defining a blank chart where your data will be plotted. In Bokeh, this is done using the figure() function, which sets up the plot’s size, title, axes, and other properties.
2. Add Data – Use Pandas or NumPy to provide the dataset.
3. Customize Interactivity – Add hover tools, zoom options, sliders, and widgets.
4. Display the Plot – Show it in a Jupyter Notebook, a web app, or a standalone HTML file.

This step-by-step approach makes it easy to go from raw data to an interactive dashboard in minutes.

Example: Creating an Interactive Scatter Plot with Bokeh

Let’s create an interactive scatter plot using Bokeh. This plot will allow users to zoom in, pan, and hover over points to see details.

Python Code for Interactive Scatter Plot

from bokeh.plotting import figure, show
from bokeh.models import HoverTool, ColumnDataSource
from bokeh.io import output_file
import numpy as np

# Generate random data
np.random.seed(42)
x = np.random.randn(500)
y = np.random.randn(500)
sizes = np.random.randint(10, 50, 500)

# Create a ColumnDataSource
source = ColumnDataSource(data={"x": x, "y": y, "size": sizes})

# Create a new plot with interactive tools
p = figure(title="Interactive Scatter Plot", tools="pan,box_zoom,reset,hover")

# Add scatter points with ColumnDataSource
p.scatter("x", "y", size="size", source=source, color="navy", alpha=0.5)

# Add hover tool with proper field references
hover = p.select(dict(type=HoverTool))
hover.tooltips = [("X Value", "@x"), ("Y Value", "@y")]

# Output to an HTML file and show
output_file("bokeh_scatter.html")
show(p)

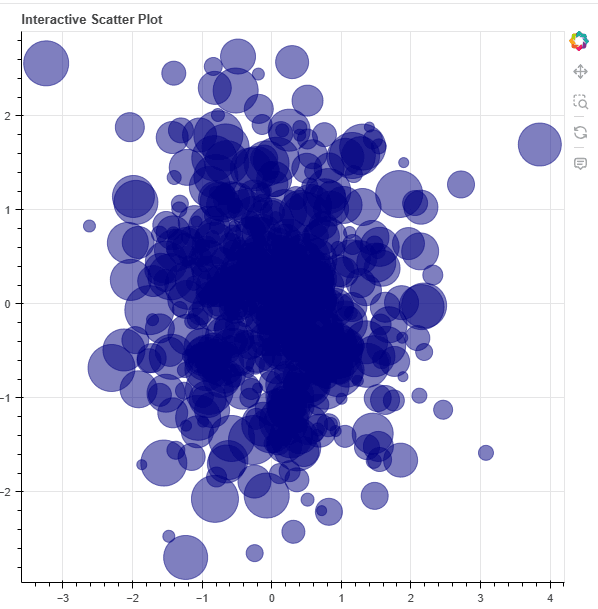

What Happens in This Code?

1. Creates a scatter plot with random data points.
2. Enables zooming, panning, and reset tools for easy interaction.
3. Adds a hover tool to display values when hovering over points.
4. Saves the chart as an HTML file and opens it in a web browser.

With just a few lines of code, you get an interactive visualization that traditional tools like Matplotlib and Seaborn can’t match.

Best Use Cases for Bokeh

1. Financial Dashboards – Stock market visualizations, real-time analytics.
2. Interactive Data Exploration – Scientific and business intelligence applications.
3. Web-Based Data Applications – Works well with Flask, Django, and FastAPI.
4. Geospatial Visualizations – Interactive maps and heatmaps.

If you’re building interactive charts for big data, financial analysis, or AI applications, Bokeh is the best data visualization tool for the job.

Building Full Dashboards with Bokeh

Bokeh isn’t just for charts—it can create entire dashboards with sliders, buttons, and dropdowns.

Here’s a simple interactive dashboard that updates a chart based on user input.

from bokeh.layouts import column, row
from bokeh.models import Slider, Select, CheckboxGroup, Button
from bokeh.plotting import figure, curdoc

# Create figure
p = figure(title="Interactive Dashboard - Line Chart")
line = p.line([1, 2, 3, 4], [1, 4, 9, 16], line_width=2, color="blue")

# Slider for line width
slider = Slider(start=1, end=10, value=2, step=1, title="Line Width")

# Dropdown for line color
color_select = Select(title="Line Color", value="blue", options=["blue", "red", "green", "black", "purple"])

# Checkbox for grid visibility
grid_checkbox = CheckboxGroup(labels=["Show Grid"], active=[0])

# Reset button
reset_button = Button(label="Reset Chart", button_type="warning")

# Update functions
def update_line_width(attr, old, new):
    line.glyph.line_width = slider.value

def update_line_color(attr, old, new):
    line.glyph.line_color = color_select.value

def toggle_grid(attr, old, new):
    p.xgrid.visible = 0 in grid_checkbox.active
    p.ygrid.visible = 0 in grid_checkbox.active

def reset_chart():
    slider.value = 2
    color_select.value = "blue"
    grid_checkbox.active = [0]

# Add event listeners
slider.on_change("value", update_line_width)
color_select.on_change("value", update_line_color)
grid_checkbox.on_change("active", toggle_grid)
reset_button.on_click(reset_chart)

# Arrange layout and add to document
layout = column(p, row(slider, color_select), row(grid_checkbox, reset_button))
curdoc().add_root(layout)

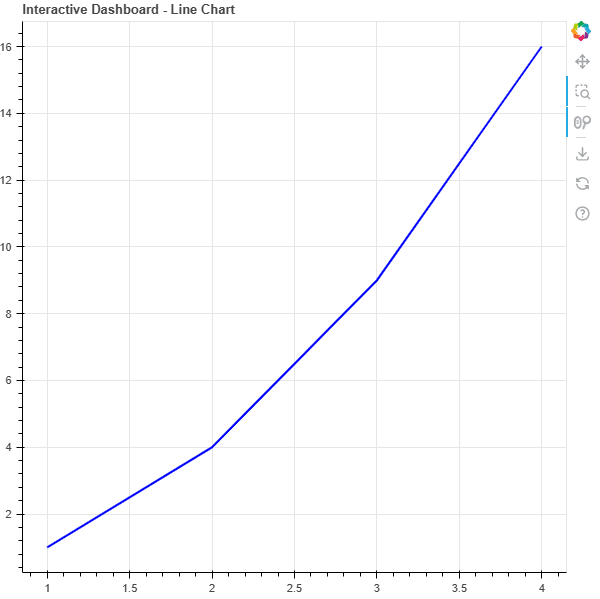

This creates a live dashboard where the user can adjust the line thickness using a slider.

Save this script as app.py and run it with the Bokeh server:

bokeh serve --show app.py

Why You Should Learn Bokeh in 2025

1. No JavaScript Needed – Build web-ready dashboards using only Python.
2. Faster Than Matplotlib for Large Datasets – Optimized for real-time data visualization.
3. Perfect for AI, Machine Learning, and Finance – Helps with big data exploration.
4. Works Smoothly with Other Python Libraries – Integrates with Pandas, NumPy, and Flask.

As big data and interactive analytics become more important in 2025, Bokeh will be a must-have skill for data professionals.

Final Thoughts

If you need interactive charts, dashboards, or web-based data visualizations, Bokeh is one of the best Python data visualization tools. It’s faster, easier, and more Pythonic than JavaScript-based tools like D3.js or Dash.

Must Read

• The Best Python Libraries for Automation in 2025
• China vs. USA: The Race for AI Supremacy and Where India Stands
• Underrated Data Visualization Tools You Need to Master in 2025
• Top 8 Hidden Python Libraries for Machine Learning That Will Supercharge Your Models
• Best Python Libraries for Statistical Analysis: 6 Hidden Gems You Should Know

3. HoloViews – Easier, More Expressive Data Visualizations

When working with data visualization tools, we often spend more time writing code to customize plots than actually exploring the data. HoloViews solves this problem by letting you create interactive, high-quality visualizations with minimal code.

Instead of writing hundreds of lines of Matplotlib or Bokeh code, HoloViews lets you focus on the data, and it automatically handles the visualization details. That’s why it’s one of the most underrated data visualization tools you need to master in 2025.

Why is HoloViews an Underrated Data Visualization Tool?

Even though HoloViews is incredibly powerful, many data scientists still don’t use it because:

1. Most People Stick to Matplotlib or Seaborn – Traditional tools are widely used, but they require more effort to create interactive visualizations.
2. Many Don’t Realize It Works with Bokeh & Plotly – HoloViews integrates with Bokeh and Plotly, making it easy to create interactive dashboards.
3. It’s Often Overlooked in Machine Learning & AI – AI and big data analysts still rely on Pandas plots, even though HoloViews is much faster for large datasets.

Despite this, HoloViews is one of the most important Python data visualization tools for 2025, especially for data analysts, AI researchers, and business intelligence professionals.

How Does HoloViews Work?

With HoloViews, you don’t need to manually configure axes, legends, or interactions. You simply declare your data, and it generates the best possible visualization for it.

Here’s how it works:

1. Define Your Data – Load it using Pandas, NumPy, or Xarray.
2. Choose a Chart Type – Use scatter, bar, line, or heatmaps with a simple function call.
3. Let HoloViews Handle the Rest – It automatically optimizes labels, axes, interactivity, and rendering.

This makes it much easier than Matplotlib or Seaborn, while still allowing full customization when needed.

Example: Creating a Line Chart with HoloViews

Let’s create a simple interactive line chart with just a few lines of code.

Python Code for Interactive Line Plot

from bokeh.layouts import column
from bokeh.io import curdoc
import holoviews as hv
import numpy as np

hv.extension('bokeh')

# Generate data
x = np.linspace(0, 10, 100)
y = np.sin(x)

# Create interactive Holoviews plot
line_plot = hv.Curve((x, y), label="Sine Wave").opts(title="Interactive Sine Wave", width=600, height=400)

# Convert to Bokeh layout
doc = curdoc()
doc.add_root(hv.render(line_plot))

What Happens in This Code?

1. Creates a sine wave using NumPy.
2. Uses HoloViews to create an interactive line plot.
3. Automatically enables zooming, panning, and tooltips.
4. Uses Bokeh as the rendering engine, making the chart web-ready.

With just a few lines of code, HoloViews generates a fully interactive plot—something that takes dozens of lines in Matplotlib or Seaborn.

If you want a fully interactive dashboard, wrap it in a Bokeh server app and run:

bokeh serve --show app.py

Best Use Cases for HoloViews

1. Time Series Analysis – Stock market trends, climate data, and AI training logs.
2. Geospatial Data – Heatmaps and interactive maps for location-based insights.
3. Machine Learning Visualization – Works great with TensorFlow, PyTorch, and Pandas.
4. Financial Data Dashboards – Real-time analytics with Bokeh and Plotly support.

If you work with big data, AI research, or business intelligence, HoloViews makes visualization faster and more intuitive.

Why You Should Learn HoloViews in 2025

1. Faster than Matplotlib & Seaborn – Reduces time spent on plotting and formatting.
2. Perfect for AI, Machine Learning & Big Data – Handles large datasets with ease.
3. Less Code, More Impact – Focus on data analysis, not boilerplate code.
4. Seamless Integration with Other Tools – Works with Pandas, NumPy, Bokeh, and Plotly.

As interactive data visualizations become standard in AI, finance, and analytics, HoloViews will be an essential tool in 2025.

Final Thoughts

If you want a faster, easier, and more expressive way to create interactive data visualizations, HoloViews is one of the best Python data visualization tools. It’s powerful, easy to learn, and reduces coding time significantly.

4. Altair – Declarative Statistical Visualizations

If you’re tired of writing long and complex code just to create basic visualizations, Altair is the perfect solution. It’s a declarative data visualization library that lets you define what you want to see, and it automatically handles the how.

Altair is built on the Vega and Vega-Lite frameworks, making it one of the most powerful yet underrated data visualization tools for 2025. With Altair, you can easily create interactive charts using a simple, intuitive syntax—perfect for data scientists, machine learning engineers, and business analysts.

Why is Altair an Underrated Data Visualization Tool?

Even though Altair is incredibly easy to use, many people still overlook it because:

1. Matplotlib and Seaborn dominate Python visualization – But they require more lines of code and extra setup.
2. Many assume Altair lacks flexibility – It actually supports interactive charts, animations, and complex statistical plots.
3. It’s not as widely known as Bokeh or Plotly – But it integrates seamlessly with Pandas, Jupyter Notebooks, and AI frameworks.

Altair is one of the best Python data visualization tools to master in 2025, especially if you work with statistical data, analytics, or machine learning.

How Does Altair Work?

Altair follows a declarative approach—meaning you only describe what you want to visualize, and it automatically handles the rendering, scaling, and interaction.

Here’s a basic workflow:

1. Load Data – Works with Pandas DataFrames.
2. Declare the Chart Type – Line, bar, scatter, heatmap, etc.
3. Define Encodings – Assign columns to axes, colors, and tooltips.
4. Render the Chart – Altair handles all the complexities automatically.

This reduces coding time while making the visualization process more intuitive.

Example: Creating a Simple Scatter Plot with Altair

Let’s create an interactive scatter plot with just a few lines of code.

Python Code for Interactive Scatter Plot

import altair as alt
import pandas as pd
import webbrowser

# Sample dataset
df = pd.DataFrame({
    'x': [1, 2, 3, 4, 5, 6, 7, 8, 9, 10],
    'y': [10, 20, 30, 25, 50, 60, 70, 65, 90, 100]
})

# Create scatter plot
scatter_chart = alt.Chart(df).mark_circle(size=100).encode(
    x='x',
    y='y',
    tooltip=['x', 'y']  # Shows data values on hover
).interactive()  # Enables zooming & panning

# Save the chart as an HTML file
output_file = "scatter_plot.html"
scatter_chart.save(output_file)

# Open the chart in the default web browser
webbrowser.open(output_file)

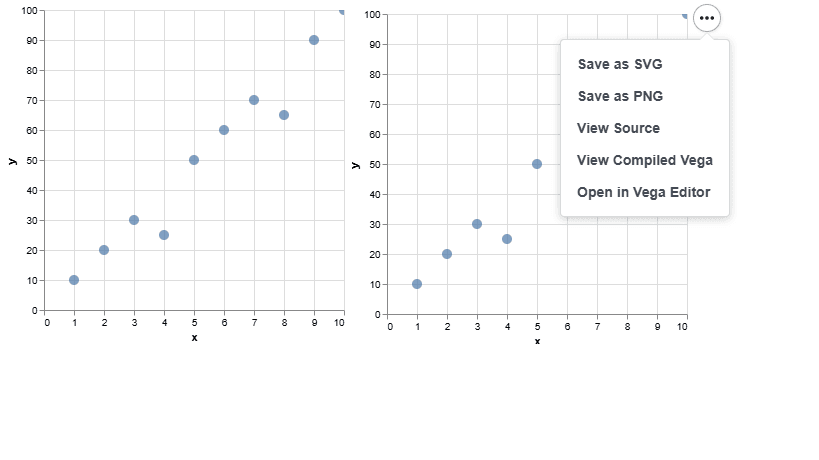

How It Works

1. Creates a scatter plot with Altair.
2. Saves the chart as an HTML file.
3. Automatically opens the chart in your default browser.

Now, just run the script in PyCharm, and the chart will open in your browser!

Why You Should Learn Altair in 2025

1. Faster than Matplotlib & Seaborn – No need for manual scaling, axes formatting, or interactivity setup.
2. Great for Data Science & AI – Supports complex statistical plots with minimal effort.
3. Declarative Syntax Saves Time – Define what you want, and Altair figures out the details.
4. Perfect for Interactive Dashboards – Works with Streamlit, Jupyter, and web-based reports.

If you want to create interactive, high-quality visualizations without writing long, complex code, Altair is the best tool to master in 2025.

Final Thoughts

Altair is one of the easiest and most powerful Python data visualization tools, making it perfect for data scientists, AI researchers, and business analysts. Its declarative syntax, built-in interactivity, and seamless Pandas integration make it a must-learn tool for anyone working with data in 2025.

5. Plotnine – ggplot2 for Python

If you’re coming from R’s ggplot2 and looking for a Python alternative, Plotnine is exactly what you need. It’s a grammar of graphics-based data visualization tool, making it one of the most underrated data visualization tools you should master in 2025.

What Makes Plotnine Special?

Most Python users rely on Matplotlib, Seaborn, or Plotly, but Plotnine brings the power of ggplot2 to Python.

1. Follows the same layered approach as ggplot2 – Define data, aesthetics, and layers to build complex plots easily.
2. Highly flexible and customizable – Lets you create publication-quality charts with minimal effort.
3. Works seamlessly with Pandas – If you work with dataframes, this tool will feel natural.
4. Great for statistical visualizations – Perfect for data science, machine learning, and analytics projects.

While ggplot2 dominates R-based visualization, many Python users overlook Plotnine—making it an underrated data visualization tool to master in 2025.

How Does Plotnine Work?

Plotnine follows a layered approach to building plots. Instead of manually setting up axes, labels, and colors, you add layers to your visualization, making the process more structured and intuitive.

Basic Structure of a Plotnine Chart

import plotnine as p9
from plotnine import ggplot, aes, geom_point
import pandas as pd

# Sample dataset
df = pd.DataFrame({
    'x': [1, 2, 3, 4, 5, 6, 7, 8, 9, 10],
    'y': [10, 20, 30, 25, 50, 60, 70, 65, 90, 100]
})

# Create scatter plot

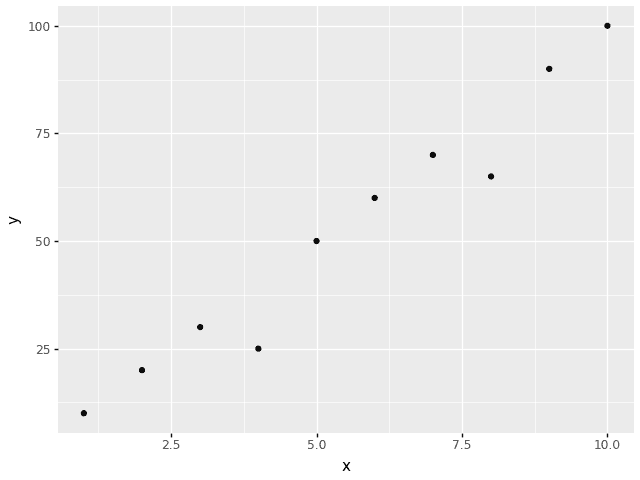

ggplot(df, aes(x='x', y='y')) + geom_point()

What’s Happening Here?

1. Define the dataset (df) – Uses a Pandas DataFrame.
2. Set aesthetics (aes) – Maps x to the x-axis and y to the y-axis.
3. Add a layer (geom_point) – Defines the type of chart (scatter plot).

This layered structure makes it easy to build, modify, and extend visualizations without rewriting the whole code.

Best Use Cases for Plotnine

1. Statistical Data Analysis – Regression plots, density plots, correlation studies.
2. Exploratory Data Analysis (EDA) – Quickly explore datasets with multi-variable plots.
3. Business & Finance – Time series analysis, market trends, revenue growth visualizations.
4. Machine Learning Research – Model evaluation, feature importance, classification results.

If you need statistical insights in Python, Plotnine is an essential tool to master in 2025.

Comparison: Plotnine vs. Matplotlib vs. Seaborn

Matplotlib is low-level and fully customizable, while Seaborn adds high-level statistical visualization features. But Plotnine’s ggplot2-style syntax makes complex visualizations easier.

Final Thoughts

Plotnine is a hidden gem for Python users who want ggplot2-style visualizations. Its layered grammar-of-graphics approach, seamless Pandas integration, and powerful statistical capabilities make it one of the best Python data visualization tools to master in 2025.

6. PyGWalker – GUI-Based Data Exploration

PyGWalker (Python Graphic Walker) is a game-changer for data exploration in Python. It combines Pandas with a GUI-based visualization tool, making it one of the most underrated data visualization tools you should master in 2025.

If you’ve ever used Tableau, Power BI, or Excel Pivot Charts, PyGWalker brings a similar drag-and-drop experience directly into Jupyter Notebook. No need to write complex code—just interact with your data visually.

Why PyGWalker?

• No Code Needed – Explore datasets without writing long scripts.
• Drag-and-Drop Visualizations – Similar to Tableau, Power BI, and Google Data Studio.
• Seamless Pandas Integration – Works directly with dataframes.
• Multiple Chart Types – Easily create bar charts, line charts, scatter plots, heatmaps, and more.
• Interactive Filtering & Aggregation – Apply filters, group data, and generate summaries instantly.
• Fast & Intuitive – Get quick insights without the need for complex libraries like Matplotlib or Seaborn.

This makes PyGWalker one of the easiest data visualization tools for beginners, analysts, and business users in Python.

How to Install PyGWalker?

To get started, install PyGWalker using pip:

pip install pygwalker

Once installed, you can integrate it with Pandas in a Jupyter Notebook.

Basic Example: Using PyGWalker with Pandas

import pandas as pd
import pygwalker as pyg

# Sample dataset
df = pd.DataFrame({
    'Date': pd.date_range(start='2024-01-01', periods=10, freq='D'),
    'Sales': [100, 150, 200, 250, 180, 300, 280, 320, 400, 350],
    'Category': ['A', 'B', 'A', 'C', 'B', 'C', 'A', 'B', 'C', 'A']
})

# Launch PyGWalker interface
pyg.walk(df)

When you run this, a Tableau-style GUI appears, allowing you to explore data visually with drag-and-drop functionality.

Key Features of PyGWalker

• No Code Required – Just upload a Pandas DataFrame and start exploring.
• Automatic Data Summarization – Aggregates data, detects patterns, and applies grouping automatically.
• Multiple Chart Options – Supports bar charts, pie charts, scatter plots, heatmaps, and trend lines.
• Filters and Interactive Elements – Similar to BI tools like Tableau and Looker.
• Works in Jupyter Notebook – Perfect for data analysts, scientists, and engineers.

Unlike Matplotlib, Seaborn, or Plotly, PyGWalker doesn’t require coding—just drag, drop, and analyze.

Comparison: PyGWalker vs. Tableau vs. Seaborn

Tableau is a premium tool, while Seaborn requires coding. PyGWalker combines the best of both worlds, offering no-code visualization inside Jupyter Notebook.

Why You Should Learn PyGWalker in 2025

1. Bridges the gap between coding and BI tools like Tableau
2. Perfect for business users and analysts who want Python-powered insights
3. Saves time by eliminating the need to write visualization code
4. One of the most underrated Python data visualization tools

If you’re a data analyst, business professional, or Python beginner, PyGWalker makes data exploration 10x easier.

7. K3D-Jupyter – Real-Time 3D Visualizations

When it comes to 3D data visualization tools, most Python libraries struggle with real-time rendering and interactivity. This is where K3D-Jupyter shines—it allows you to create high-performance, interactive 3D visualizations directly in Jupyter Notebook.

Unlike Matplotlib, Plotly, or Seaborn, which focus on 2D charts, K3D-Jupyter is built for 3D graphics, volumetric data, and point clouds, making it one of the most underrated data visualization tools to master in 2025.

Why Use K3D-Jupyter?

• Real-Time 3D Rendering – Works smoothly with large datasets, including point clouds, meshes, and volume rendering.
• GPU Acceleration – Uses WebGL for fast, hardware-accelerated rendering.
• Jupyter Notebook Integration – Runs natively inside Jupyter, making it perfect for data science and AI projects.
• Supports Multiple Data Types – Easily visualize surfaces, vectors, parametric plots, and volumetric data.
• Interactivity – Rotate, zoom, and modify objects without slowing down performance.
• Works with NumPy & Pandas – Compatible with popular Python data science libraries.

This makes K3D-Jupyter a must-have for 3D data visualization in Python, especially if you’re working with scientific computing, AI, or GIS applications.

Installing K3D-Jupyter

To get started, install K3D-Jupyter using pip:

pip install k3d

Then, enable it in Jupyter Notebook:

jupyter nbextension enable --py --sys-prefix k3d

Now, you’re ready to create stunning 3D visualizations!

Basic Example: 3D Scatter Plot with K3D-Jupyter

import k3d
import numpy as np

# Generate random 3D data
n = 1000
x = np.random.rand(n)
y = np.random.rand(n)
z = np.random.rand(n)

# Create a 3D scatter plot
plot = k3d.plot()
points = k3d.points(np.vstack([x, y, z]).T, point_size=0.2, color=0xff0000)
plot += points

# Display the plot
plot.display()

You can rotate, zoom, and interact with the 3D points inside Jupyter Notebook.

Best Use Cases for K3D-Jupyter

• 3D Data Visualization in Python – Works well for AI, machine learning, and scientific research.
• Volumetric Data & Medical Imaging – Ideal for CT scans, MRI, and 3D medical data.
• Point Cloud Processing – Great for LiDAR, robotics, and geospatial analysis.
• Physics & Engineering Simulations – Simulate fluid dynamics, waves, and mechanical structures.
• 3D AI Model Visualization – Useful for neural network visualizations in AI research.

For data scientists, engineers, and researchers, K3D-Jupyter is a powerful yet underrated Python visualization tool in 2025.

Comparison: K3D-Jupyter vs. Matplotlib vs. Plotly

Matplotlib’s 3D support is slow and limited, while Plotly doesn’t handle point clouds or large datasets efficiently. K3D-Jupyter is optimized for large-scale 3D visualization in Python.

8. mplfinance – Beautiful Financial Charts

When working with financial data, creating clear and visually appealing stock charts is essential. While Matplotlib is a great general-purpose data visualization tool, it doesn’t offer built-in support for candlestick charts, moving averages, or trading volume indicators.

Thats why we use mplfinance —it’s a Python library designed specifically for financial data visualization. If you’re involved in algorithmic trading, stock market analysis, or cryptocurrency visualization, then mplfinance is one of the most underrated data visualization tools you need to master in 2025.

Why Use mplfinance?

• Simple & Lightweight – Built on top of Matplotlib, making it fast and efficient.
• Candlestick & OHLC Charts – Perfect for technical analysis and stock market trends.
• Customizable Indicators – Add moving averages, Bollinger Bands, RSI, MACD, and volume bars.
• Works with Pandas DataFrames – Easily visualize financial data stored in CSV or online sources.
• Optimized for Large Datasets – Handles years of historical stock data smoothly.

If you’re dealing with stock price trends, cryptocurrency charts, or financial time-series analysis, mplfinance is a must-learn tool in 2025.

Installing mplfinance

You can install mplfinance with pip:

pip install mplfinance

Once installed, you can start creating professional stock charts with just a few lines of Python code.

Basic Example: Candlestick Chart with mplfinance

import mplfinance as mpf
import pandas as pd

# Load financial data (assumed to be a CSV with Date, Open, High, Low, Close, Volume)
df = pd.read_csv("AAPL_stock_data.csv", index_col="Date", parse_dates=True)

# Plot candlestick chart
mpf.plot(df, type="candle", volume=True, title="Apple Stock Price", style="charles")

This creates a clean candlestick chart with trading volume bars below it.

Adding Moving Averages & Custom Styling

mpf.plot(df, type="candle", volume=True,
         mav=(10, 50),  # Moving Averages: 10-day & 50-day
         title="AAPL Stock Price with Moving Averages",
         style="yahoo")  # Use Yahoo Finance chart style

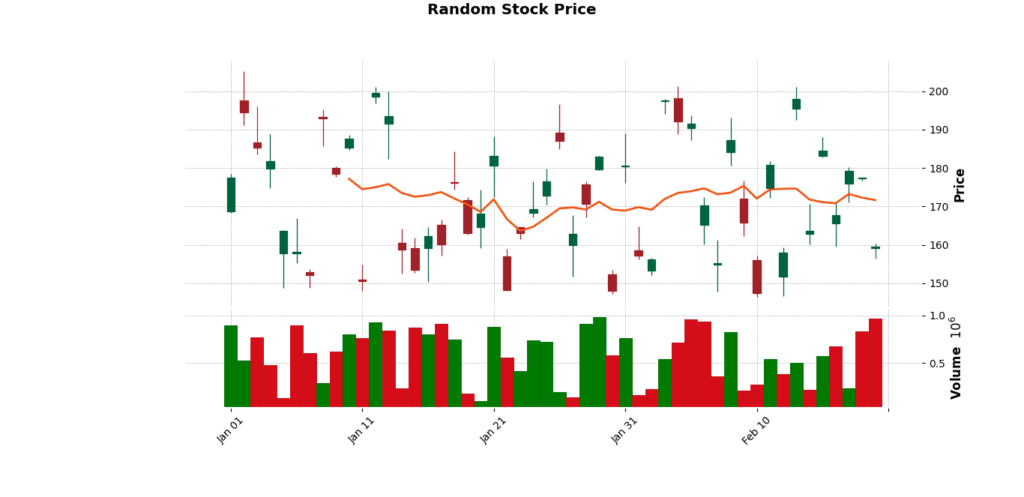

Now, the chart includes 10-day and 50-day moving averages, just like professional trading platforms.

Advanced Example: Adding Bollinger Bands & MACD

from ta.volatility import BollingerBands
from ta.trend import MACD

# Compute Bollinger Bands
indicator_bb = BollingerBands(close=df["Close"], window=20, window_dev=2)
df["BB_High"] = indicator_bb.bollinger_hband()
df["BB_Low"] = indicator_bb.bollinger_lband()

# Compute MACD
macd = MACD(close=df["Close"])
df["MACD"] = macd.macd()
df["Signal"] = macd.macd_signal()

# Plot chart with Bollinger Bands
apds = [mpf.make_addplot(df["BB_High"], color="blue"),
        mpf.make_addplot(df["BB_Low"], color="blue"),
        mpf.make_addplot(df["MACD"], panel=1, color="red"),
        mpf.make_addplot(df["Signal"], panel=1, color="green")]

mpf.plot(df, type="candle", volume=True,
         title="AAPL Stock with Bollinger Bands & MACD",
         style="blueskies", addplot=apds)

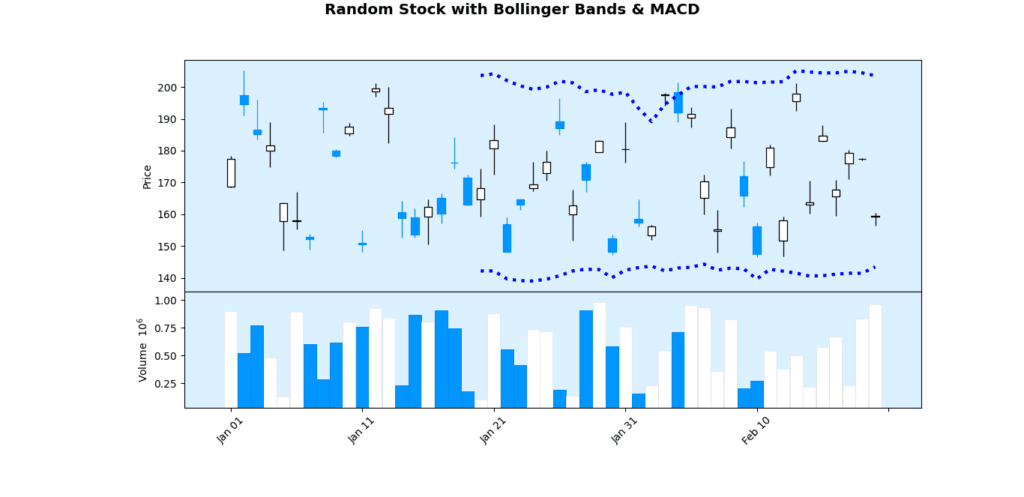

This chart includes Bollinger Bands and a MACD indicator panel below the main stock chart.

Best Use Cases for mplfinance

• Stock Market Analysis – Visualize candlestick charts, trends, and technical indicators.
• Algorithmic Trading – Use mplfinance for backtesting trading strategies.
• Cryptocurrency Charts – Track Bitcoin, Ethereum, and altcoin price trends.
• Historical Price Data – Analyze decades of stock price movements.
• Live Market Dashboards – Integrate with real-time stock API data.

For anyone working with financial data, mplfinance is a game-changer in Python.

Comparison: mplfinance vs. Matplotlib vs. Plotly

Matplotlib isn’t designed for financial charts, while Plotly can handle real-time data but lacks the flexibility of mplfinance’s technical analysis tools.

Conclusion

Mastering these data visualization tools in 2025 will help you analyze, explore, and present data more effectively. Whether you need big data scalability, interactive dashboards, or real-time 3D visualizations, these tools have you covered.

Which one are you excited to try? Share your thoughts!

For more insights, visit Emitech Logic.

FAQs

External Resources

Here are some helpful links to learn more about these data visualization tools:

• Datashader Documentation – https://datashader.org/
• Plotnine Tutorials – https://plotnine.readthedocs.io/
• PyGWalker GitHub Repo – https://github.com/Kanaries/pygwalker
• K3D-Jupyter Guide – https://k3d-jupyter.org/
• mplfinance Documentation – https://github.com/matplotlib/mplfinance

For more in-depth tutorials, check out Emitech Logic!

About The Author

Emmimal Alexander

Emmimal Alexander is the founder of EmitechLogic, specializing in AI, machine learning, deep learning, and programming. With a background in business and technology, she creates insightful resources that make advanced concepts accessible. Her expertise spans synthetic data generation, neural networks, and AI-driven creativity. Through her work, she empowers professionals and enthusiasts to stay ahead in the evolving tech landscape.

See author's posts
